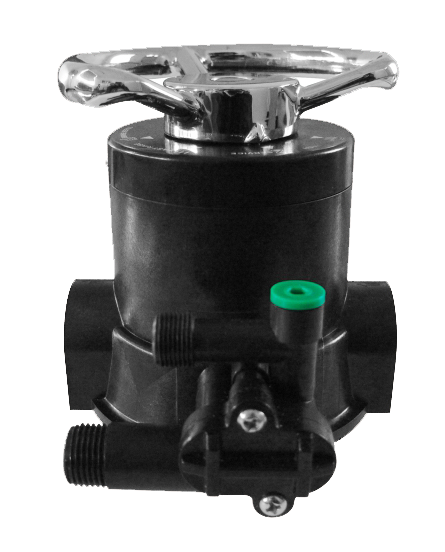

1" Manual Softner Valve 61104(F64A)
| Model No : |
61104(F64A) |
| Type : |
Softener |
| Mode of Operation : |
Manual |
| Water Capacity : |
4000Lph |
| Size of Inlet : |
1"F |
| Size of Outlet: |
1"F |
| Size of Drain: |
1/2"M |
| Brine Line Connector : |
3/8"M |
| T &B Strainer Size |
3/4" |
| Size of Base |
2.5"-8NPSM |
| Size of Riser pipe |
1.05"OD |
| ORG Part ld |
808 |
Prduct Description
- Top face, Top mounted with metal handle manual control softener valve is placed to perform the various functions like service, back wash, brine & slow rinse, brine refill and fast rinse.
- It can also be mounted on side by using of side mount connector.
- It can be operated under pressure without leakage
- Small rotation angle with smooth movement
- Applicable for softener and ion exchange system.
1" Manual Softener Valve 61204C(F64AC)
| Model No : |
61204C(F64AC) |
| Type : |
Softener |
| Mode of Operation : |
Manual |
| Water Capacity : |
4000Lph |
| Size of Inlet : |
1"F |
| Size of Outlet: |
1"F |
| Size of Drain: |
1/2"M |
| Brine Line Connector : |
3/8"M |
| T &B Strainer Size |
3/4" |
| Size of Base |
2.5"-8NPSM |
| Size of Riser pipe |
1.05"OD |
| ORG Part ld |
247 |
Prduct Description
- Front face, Top mounted manual control Softener valve is placed to perform the various functions like service, back wash, brine & slow rinse, brine refill and fast rinse.
- It can be operated under pressure without leakage.
- Small rotation angle with smooth movement.
- Applicable for softener and ion exchange system.

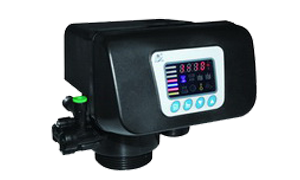

1" Automatic Softener Valve 63604(F63C3)
| Model No : |
63604(F63C3) |
| Type : |
Softener |
| Mode of Operation : |
Automatic |
| Water Capacity : |
4000Lph |
| Size of Inlet : |
1"M |
| Size of Outlet: |
1"M |
| Size of Drain: |
1/2"M |
| Brine line Connector: |
3/8"M |
| T &B Strainer Size |
3/4" |
| Size of Base: |
2.5"-8 NPSM |
| Size of Riser pipe: |
1.05" OD |
| ORG Part ld |
251 |
Prduct Description
- Top mounted micro processed automatic control softener valve is placed to perform the various functions like service, back wash, brine & slow rinse, brine refill and fast rinse.
- Equipped with LED Display and facility like remote handling connector, interlock functions, signal output connector.
- User friendly programming and operation, Key board locking Functions to prevent misuse.
- Data will be saved and safe at time of power cut.
- Programme selection available between meter type and time type.
- It can be operated under pressure without leakage.
- Applicable for softener and ion exchange system.

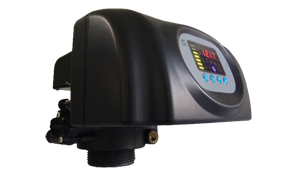

1" Auto Softener Valve 83604B(F83B3)
| Model No : |
83604B(F83B3) |
| Type : |
Softener |
| Mode of Operation : |
Automatic |
| Water Capacity : |
4000Lph |
| Size of Inlet : |
1"M |
| Size of Outlet: |
1"M |
| Size of Drain: |
1/2"M |
| Brine line Connector: |
3/8"M |
| T &B Strainer Size |
3/4" |
| Size of Base: |
2.5"-8 NPSM |
| Size of Riser pipe: |
1.05" OD |
| ORG Part ld |
810 |
Prduct Description
- Top mounted micro processed automatic control softener valve is placed to perform the various functions like service, back wash, brine & slow rinse, brine refill and fast rinse.
- Raw water available in output line at the time of regeneration
- Equipped with LED Display and facility like remote handling connector, interlock functions, signal output connector.
- User friendly programming and operation, Key board locking functions to prevent misuse
- Data will be saved and safe at time of power cut.
- Programme selection available between meter type and time type.
- Applicable for online softener.
- It can be operated under pressure without leakage
