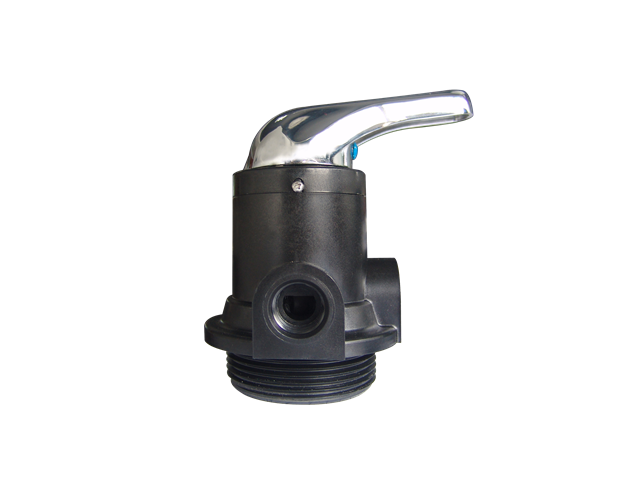

3/4 Manual Filter Valve 51102(F56E)
| Model No : |
51102(F56E) |
| Type : |
Filter |
| Mode of Operation : |
Manual |
| Water Capacity : |
2000Lph |
| Size of Inlet : |
3/4"M |
| Size of Outlet: |
3/4"M |
| Size of Drain: |
3/4"M |
| T &B Strainer Size |
3/4" |
| Size of Base: |
2.5"-8 NPSM |
| Size of Riser pipe: |
1.05" OD |
| ORG Part ld |
807 |
Prduct Description
- Top face, Top mounted with metal handle manual control filter valve is placed to perform the various functions like service, fast rinse and backwash.
- It can also be mounted on side by using the side mount connector.
- It can be operated under pressure without leakage
- Small rotation angle with smooth movement
- Applicable for sand filter, carbon filter and swimming pool filter etc.

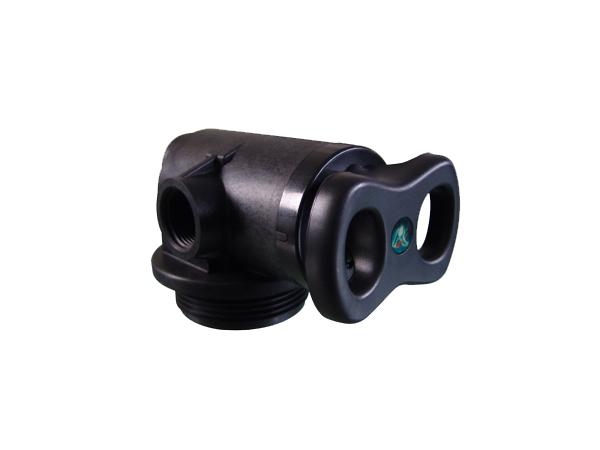

3/4 Manual Filter Valve 51202(F56EC)
| Model No : |
51202(F56EC) |
| Type : |
Filter |
| Mode of Operation : |
Manual |
| Water Capacity : |
2000Lph |
| Size of Inlet : |
3/4"F |
| Size of Outlet: |
3/4"F |
| Size of Drain: |
3/4"F |
| T &B Strainer Size |
3/4" |
| Size of Base: |
2.5"-8 NPSM |
| Size of Riser pipe: |
1.05" OD |
| ORG Part ld |
248 |
Prduct Description
- Front face, Top mounted manual control filter valve is placed to perform the various functions like service, fast rinse and backwash.
- It can be operated under pressure without leakage
- Small rotation angle with smooth movement
- Applicable for sand filter, carbon filter and swimming pool filter etc.
3/4 Automatic Filter Valve 53202(F71B1)
| Model No : |
53202(F71B1) |
| Type : |
Filter |
| Mode of Operation : |
Automatic |
| Water Capacity : |
2000Lph |
| Size of Inlet : |
3/4"F |
| Size of Outlet: |
3/4"F |
| Size of Drain: |
3/4"F |
| T &B Strainer Size |
3/4" |
| Size of Base |
2.5"-8NPSM |
| Size of Riser pipe |
1.05"OD |
| ORG Part ld |
755 |
Prduct Description
- Top mounted micro processed automatic control filter valve is placed to perform the various functions like service, fast rinse and backwash.
- Equipped with LED Display and facility like rinsing frequency, remote handling connector, interlock functions, signal output connector.
- User friendly programming and operation, Key board locking functions to prevent misuse.
- Data will be saved and safe at time of power cut.
- It can be operated under pressure without leakage.
- Applicable for sand filter, carbon filter and swimming pool filter etc.
