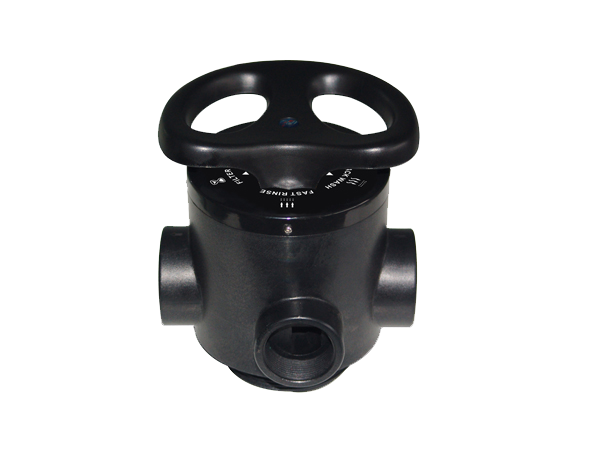

2" Manual Filter Valve 51210 (F56D)
| Model No : |
51210(F56D) |
| Type : |
Filter |
| Mode of Operation : |
Manual |
| Water Capacity : |
10000Lph |
| Size of Inlet : |
2"F |
| Size of Outlet: |
2"F |
| Size of Drain: |
1.5"F |
| T &B Strainer Size |
1 1/2" |
| Size of Base: |
4"8UN |
| Size of Riser pipe: |
1.5" D-GB |
| ORG Part ld |
713 |
Prduct Description
- Top / Side mounted manual control filter valve is placed to perform the various functions like service, fast rinse and backwash, it can also be mounted on side by using side mount connector.
- It can be operated under pressure without leakage
- Small rotation angle with smooth movement.
- Applicable for sand filter, carbon filter and swimming pool filter etc.

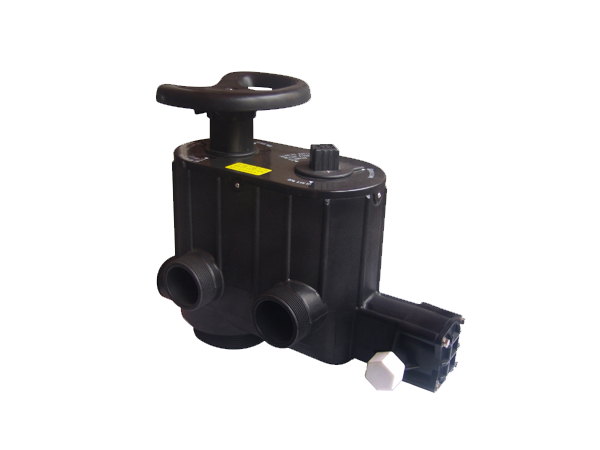

2" Manual Filter Valve 51215(F77BS)
| Model No : |
51215(F77BS) |
| Type : |
Filter |
| Mode of Operation : |
Manual |
| Water Capacity : |
15000Lph |
| Size of Inlet : |
2"M |
| Size of Outlet: |
2"M |
| Size of Drain: |
2"M |
| T &B Strainer Size |
1 1/2" |
| Size of Base: |
4" -8UN |
| Size of Riser pipe: |
1.5" D-GB |
| ORG Part ld |
714 |
Prduct Description
- Top / Side mounted manual control filter valve is placed to perform the various functions like service, fast rinse and backwash, it can also be mounted on side by using side mount connector.
- It can be operated under pressure without leakage.
- Small rotation angle with smooth movement.
- Applicable for sand filter, carbon filter and Swimming pool filter etc.
2" Automatic Filter Valve 53510B(F75B1)
| Model No : |
53510B(F75B1) |
| Type : |
Filter |
| Mode of Operation : |
Automatic |
| Water Capacity : |
10000Lph |
| Size of Inlet : |
2"M |
| Size of Outlet: |
2"M |
| Size of Drain: |
2"M |
| T &B Strainer Size |
1 1/2" |
| Size of Base |
4"-8UN |
| Size of Riser pipe |
1.05"D-GD |
| ORG Part ld |
719 |
Prduct Description
- Top / Side mounted micro processed automatic control filter valve is placed to perform the various functions like service, fast rinse and backwash and it can also be mounted on side by using side mount connector.
- Equipped with LED Display and facility like rinsing frequency, remote handling connector, interlock functions, signal output connector.
- User friendly programming and operation, Key board locking functions to prevent misuse. Data will be saved and safe at time of power cut.
- It can be operated under pressure without leakage.
- Applicable for sand filter, carbon filter and swimming pool filter etc.
2" Automatic Filter Valve 53518(F77B1)
| Model No : |
53510B(F75B1) |
| Type : |
Filter |
| Mode of Operation : |
Automatic |
| Water Capacity : |
10000Lph |
| Size of Inlet : |
2"M |
| Size of Outlet: |
2"M |
| Size of Drain: |
2"M |
| T &B Strainer Size |
1 1/2" |
| Size of Base |
4"-8UN |
| Size of Riser pipe |
1.05"D-GD |
| ORG Part ld |
719 |
Prduct Description
- Top / Side mounted micro processed automatic control filter valve is placed to perform the various functions like service, fast rinse and backwash and it can also be mounted on side by using side mount connector.
- Equipped with LED Display and facility like rinsing frequency, remote handling connector, interlock functions, signal output connector.
- User friendly programming and operation, Key board locking functions to prevent misuse. Data will be saved and safe at time of power cut.
- It can be operated under pressure without leakage.
- Applicable for sand filter, carbon filter and swimming pool filter etc.
