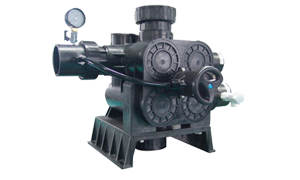

2 1/2 Manual Filter Valve 51230(F78BS)
| Model No : |
51230(F78BS) |
| Type : |
Filter |
| Mode of Operation : |
Manual |
| Water Capacity : |
30000Lph |
| Size of Inlet : |
DN 65 |
| Size of Outlet: |
DN 65 |
| Size of Drain: |
DN 65 |
| T &B Strainer Size |
DN 80 |
| ORG Part ld |
715 |
Prduct Description
- Side mount manual control filter valve equipped with side mount stand to perform the various functions like service, fast rinse and backwash.
- It can be operated under pressure without leakage.
- Small rotation angle with smooth movement.
- Applicable for sand filter, carbon filter and swimming pool filter etc.

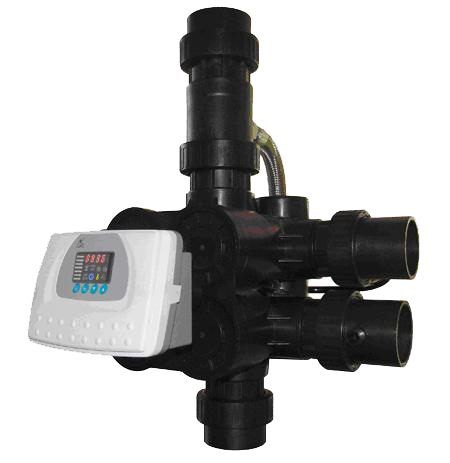

2 1/2 Auto Filter Valve 53530(78B1)
| Model No : |
53530(78B1) |
| Type : |
Filter |
| Mode of Operation : |
Automatic |
| Water Capacity : |
30000Lph |
| Size of Inlet : |
DN 65 |
| Size of Outlet: |
DN 65 |
| Size of Drain: |
DN 65 |
| T &B Strainer Size |
DN 80 |
| ORG Part ld |
721 |
Prduct Description
- Side mounted micro processed automatic control filter valve equipped with side mount stand to perform the various functions like service, fast rinse and backwash.
- Equipped with LED Display and facility like rinsing frequency, remote handling connector, interlock functions, signal output connector.
- Data will be saved and safe at time of power cut.
- User friendly programming and operation, Key board locking functions to prevent misuse. It can be operated under pressure without leakage.
- Applicable for sand filter, carbon filter and swimming pool filter etc.
